Moline Bearing Company – Mounted Ball and Roller Bearing Units
ISC Companies and Adams-ISC can supply the Moline Bearings Co. products listed on this page and others found on molinebearing.com. For more information or for a product quote, please contact us by phone 763-559-0033, by email [email protected], or by filling out our online contact form.
Moline Bearing Company was formally established in 1992, when the bearing division was spun off as a separate entity. Products include Type E Tapered Roller Bearings, M2000 Spherical Roller Bearings, M3000 Even-Lok™ Spherical Roller Bearings, ME2000, and ME3000 Spherical Roller Bearings with Type E Dimensions, and Normal Duty Mounted Ball Bearings with Set Screw and Eccentric Locking collar types. Support products include Tapered Bushings, QD Bushings, Weld On Hubs, and Shaft Collars. All products are available in a range of sizes suitable for most industrial requirements.
Type E Tapered Roller Bearings
*built with Timken Tapered Roller Bearings
- For applications that have high radial, thrust loads, or a combination of both with minimal misalignment needs
- Dimensionally interchangeable with comparable Type E units, Moline Split E1000, Moline ME2000, and ME3000
- Industry Applications: Conveying, Screening, Cranes, Mining, Forestry, Oil, Gas, Power Generation, Aggregate
- Available in shaft sizes from 1″ to 7″ and 35mm to 180mm
- Assembled, adjusted, and pre-lubricated in advance for immediate use
- All components are made, machined, and assembled in the USA
- Built with Timken Enhanced DEE tapered roller bearings with the highest industry load ratings, double-extended
inner race, case hardened rollers and races
Type E 2-Bolt Pillow Block
Type E Piloted Flange

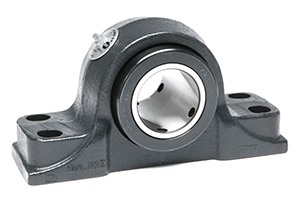

Type E 4-Bolt Pillow Block
Type E Wide Slot Take Up
Type E 4-Bolt Flange
Split E1000 Tapered Roller Bearings
*built with Timken Tapered Roller Bearings
- For applications that have heavy radial and thrust load needs and require misalignment capability
- Dimensionally interchangeable with comparable Split E units, Moline Type E, ME2000, and ME3000
- Industry Applications: Mining, Aggregate, Cement, Paper, Forestry, Air Handling, Baggage Handling, and Food Processing
- Available in shaft sizes from 1-3/16″ to 5″ and 35mm to 125mm
- Assembled, adjusted, and pre-lubricated in advance for immediate use
- All components are made, machined, and assembled in the USA

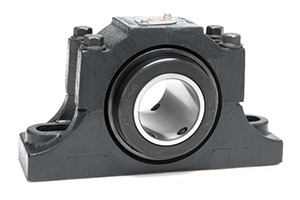

Split E1000 2-Bolt Pillow Block
Split E1000 4-Bolt Pillow Block

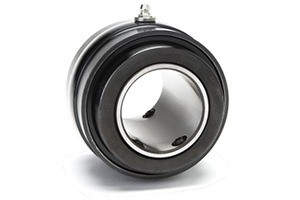

Split E1000 Cartridge Assembly
M2000 Spherical Roller Bearings
*built with SKF and Timken Spherical Roller Bearings
- For applications that require expansion and misalignment capability
- Dimensionally interchangeable with competitive Spherical Roller Bearing units, Moline M3000
- Industry Applications: Conveying, Screening, Air Handling, Food Processing, Paper, and Forestry
- Available in shaft sizes from 1-13/16″ to 5″ and 40mm to 130mm
- Assembled, adjusted, and pre-lubricated in advance for immediate use
- Machined and assembled in the USA
- Available in Expansion (red tag) and Non-Expansion (yellow tag) styles
M2000 2-Bolt Pillow Block
M2000 Piloted Flange Cartridge
M2000 4-Bolt Pillow Block
M2000 Wide Slot Take Up
M2000 4-Bolt Flange
ME2000 Spherical Roller Bearings with Type E Dimensions
*built with SKF and Timken Spherical Roller Bearings
- For applications that require expansion and misalignment capability and a Type E dimensional “footprint”
- Dimensionally interchangeable with competitive Spherical Roller Bearing units, Moline Split E1000, Moline ME3000
- Industry Applications: Conveying, Screening, Air Handling, Laundries, Food Processing, Paper, and Forestry
- Available in shaft sizes from 1-7/16″ to 5″ and 40mm to 130mm
ME2000 2-Bolt Pillow Block with Type E Dimensions
ME2000 4-Bolt Flange with Type E Dimensions
ME2000 Piloted Flange Cartridge with Type E Dimensions
M3000 Even-Lok™ Spherical Roller Bearings
*built with SKF Spherical Roller Bearings
- For applications that require expansion and misalignment capability, or where vibration, slippage, or fretting corrosion is present
- Dimensionally interchangeable with comparable competitive Spherical Roller Bearing units and Moline M2000
- Industry Applications: Conveying, Screening, Air Handling, Industrial Laundries, High Speed Fans
- Available in shaft sizes from 1-7/16″ to 4″
- Assembled, adjusted, and pre-lubricated in advance for immediate use
- Built with SKF Explorer Spherical Roller Bearings
- Supplies near 360° locking around, and near 100% interface with the shaft that eliminates slippage due to vibration
- Available in Expansion (red tag) and Non-Expansion (yellow tag) styles
- Distributes locking force equally through Even-Lok™, reducing the risk of particle infiltration in the inner sleeve
- Made in the United States
M3000 Even-Lok 2-Bolt Pillow Block
M3000 Even-Lok Piloted Flange Cartridge
M3000 Even-Lok 4-Bolt Pillow Block
M3000 Even-Lok Wide Slot Take Up
M3000 Even-Lok 4-Bolt Flange
ME3000 Even-Lok™ Spherical Roller Bearings with Type E Dimensions
*built with SKF Spherical Roller Bearings
- For applications that require expansion and misalignment capability and a Type E dimensional “footprint”
- Dimensionally interchangeable with comparable competitive Spherical Roller Bearing units, Moline Split E1000, Moline ME2000
- Industry Applications: Conveying, Screening, Air Handling, Industrial Laundries, High Speed Fans
- Available in shaft sizes from 1-7/16″ to 4″
- Built with SKF Explorer Spherical Roller Bearings
ME3000 Even-Lok 2-Bolt Pillow Block with Type E Dimensions
ME3000 Even-Lok 4-Bolt Flange with Type E Dimensions
ME3000 Even-Lok Piloted Flange Cartridge with Type E Dimensions
Mounted Ball Bearings
- For applications that require high speed, moderate load, and some axial load
- Dimensionally interchangeable with comparable industry standard units
- Industry Applications: Conveying, Screening, Material Handling, Food and Beverage
- Available in sizes from 1/2″ to 4″
- Available in normal duty set screw lock, normal duty eccentric lock, and medium duty set screw lock
Normal Duty UC 2-Bolt Pillow Block
Normal Duty UC Piloted Flange

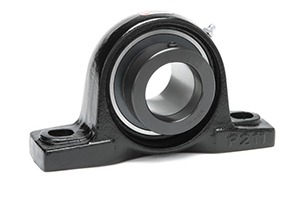

Normal Duty HC 2-Bolt Pillow Block
Normal Duty UC Piloted Flange

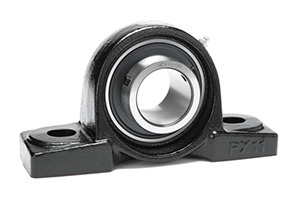

Medium Duty UCX 2-Bolt Pillow Block
Medium Duty UCX Piloted Flange
Normal Duty UC 2-Bolt Flange
Normal Duty UC Wide Slot Take Up
Normal Duty HC 2-Bolt Flange
Normal Duty HC Wide Slot Take Up
Medium Duty UCX 2-Bolt Flange

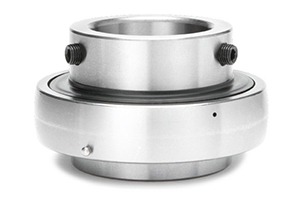

Medium Duty UCX Series Insert
Normal Duty UC 4-Bolt Flange
Normal Duty UC 200 Series Insert
Normal Duty HC 4-Bolt Flange
Normal Duty HC 200 Series Insert
Medium Duty UCX 4-Bolt Flange
End Caps and Covers
- Covers are available in standard impact resistant black ABS plastic and PETG plastic, other colors and materials are available upon request
- Meets OSHA Safety Standards for all Mechanical Transmission Apparatus
- Specialty sealing, gasket, and grease fitting options

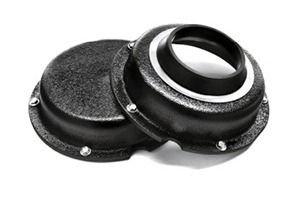

Open and Closed End Caps
Pillow Block Cover with Extended Shaft and Seal Protection

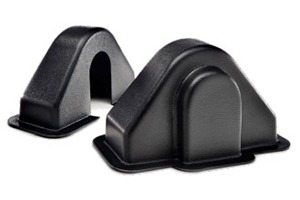

Open and Closed Pillow Block Covers
Closed 4-Bolt Flange Covers
Support Products
Bushings
- QD Bushings in styles JA, SH, SDS, SD, SK, SF, E, F, J, M, N, and P in a complete range of bore sizes
- Tapered Bushings in styles 1008, 1108, 1210, 1215, 1310, 1610, 1615, 2012, 2517, 2525, 3020, 3030, 3535, 4040, 4545, and 5050 in a complete range of bore sizes
- D Bushings in a complete range of bore sizes
Collars
- Zinc-Plated Solid Collars in sizes from 1/8 – 4-15/16
- Stainless Steel Solid Collars in sizes from 1/8 – 4
- Black Oxide Single and Double Split Collars in sizes from 1/4 – 4-7/16
- Stainless Steel Single and Double Split Collars in sizes from 1/4 – 3-1/2
Hubs
- Tapered Weld-On Hubs in Type S from 1610 through 3535 and Type W from 1210 through 5050
- QD Weld-On Hubs in styles JA-A, SH-A, SDS-A, SK-A, SF-A, E-A, F-A, J-A, M-A, N-A, and P-A
QD, Tapered, and D Bushings
Shaft Collars
Weld On Hubs
