Gates TP1595-5M-25 Twin Power HTD 9252-0586

Gates TP1595-5M-25 PowerGrip HTD Twin Power Belt. Product ID 9252-0586. Teeth: 319; Pitch: 5mm; Belt Width: 25mm; Length: 1595mm

SKU: GAT-TP1595-5M-25 Category:

Specifications

Weight 0.3949 lbs
Manufacturer

Gates

Product Number

92520586

Product Name

PowerGrip HTD Twin Power

Profile

HTD

Pitch

5mm

Number of Teeth

319

Top Belt Width (mm)

25mm

Length (mm)

1595mm

Core Material

Chloroprene

Tensile Cord

Fiberglass

Fabric Cover

Nylon

UPC

072053532630

Description

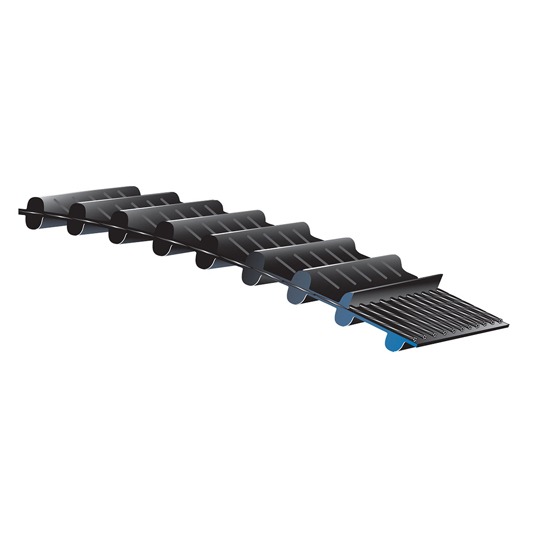

Gates PowerGrip HTD Twin Power synchronous belts are designed to perform at high speeds and in extreme temperatures, with a larger tooth profile for increased performance capacity. Twin Power belts have teeth on both sides to provide synchronization from both driving surfaces.

Markets/Applications

PowerGrip HTD Twin Power belts are suitable for many applications including data storage, hand power tools, postage handling, food processors, office machines, centrifuges, money handling, medicine diagnostic, sewing machines, ticket dispensers, robotics, vending machines, and vacuum cleaners.

Features/Advantages

  • Gates Twin Power belts have nylon facing on both tooth surfaces providing equal load carrying capabilities on either side of the belt
  • Belt capacity is equal to standard single-sided PowerGrip HTD belts
  • Fiberglass tensile cord provides high strength, excellent flex life, and high resistance to elongation
  • Neoprene body provides protection against grime, grease, oil, and moisture
  • Nylon tooth facing provides a durable wear surface for long service life
  • Eliminates lubrication and re-tensioning to reduce maintenance and labor
  • Temperature Range:-22 degrees F to +212 degrees F

Recommended Sprockets

  • PowerGrip HTD Sprockets
