Gates 2/5VX900 MN PowerBand 9389-2090

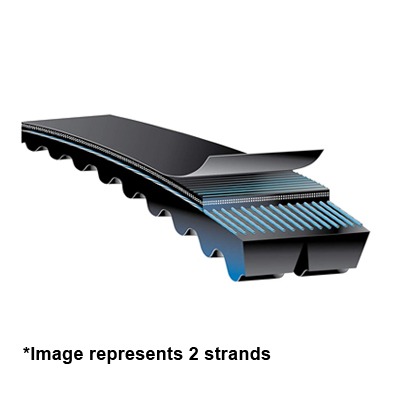

Gates 2/5VX900 Super HC Molded Notch PowerBand V-Belt. Product ID 9389-2090. Belt length of 90 in.

SKU: GAT-2/5VX900 Category:

Specifications

Weight 2.84 lbs
Manufacturer

Gates

Product Number

93892090

Product Name

Super HC Molded Notch PowerBand

V-belt Cross Section

5VX

Top Belt Width Per Strand (in)

5/8"

Nominal Thickness (in)

35/64"

Length (in)

90"

Number of Strands

2

Core Material

Oil and Heat Resistant (ethylene)

Tensile Cord

Polyester

UPC

072053246605

Description

The PowerBand construction allows multiple belts to function as a single unit, with even load distribution and each strand fitting securely in the sheave groove.

Markets/Applications

Recommended for multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over, or jump off the drive.

Features/Advantages

  • The Tie Band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
  • Notches molded into the belt make this belt well suited for drives with smaller diameter sheaves
  • Flex-Bonded Cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • Patented EPDM Material construction provides -60 degrees F to +250 degrees F temperature range to resist belt cracking
  • Meets RMA oil and heat resistant standards
  • Meets RMA static conductivity requirements

Recommended Sheaves

  • Super HC Sheaves
