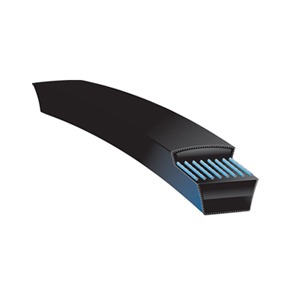

Gates E441 Hi-Power II V-Belt 9006-2441

Gates E441 Hi-Power II V-Belt. Product ID 9006-2441. Belt length of 445 in.

Request a Quote
SKU: GAT-E441 Category:

Specifications

Weight 25.79 lbs
Manufacturer

Gates
Product Number

90062441
Product Name

Hi-Power II
V-belt Cross Section

E
Top Belt Width Per Strand (in)

1-1/2"
Nominal Thickness (in)

29/32"
Length (in)

445"
Number of Strands

1
Core Material

General Purpose (diene)
Tensile Cord

Polyester
Fabric Cover

Double Layer
UPC

072053345896
Download Specifications PDF

Description

Hi-Power II V-Belts from Gates feature a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather, and aging.

Markets/Applications

Suitable for all industrial applications, including v-flat drives.

Features/Advantages

  • Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life
  • Flex-Bonded Cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • The Flex-Weave Cover is a patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt and heat
  • Meets RMA oil and heat resistant standards
  • Meets RMA static conductivity requirements

Recommended Sheaves

  • Multi-Duty Sheaves

Gates Hi-Power belts are available in A, B, C, D, and E cross sections
